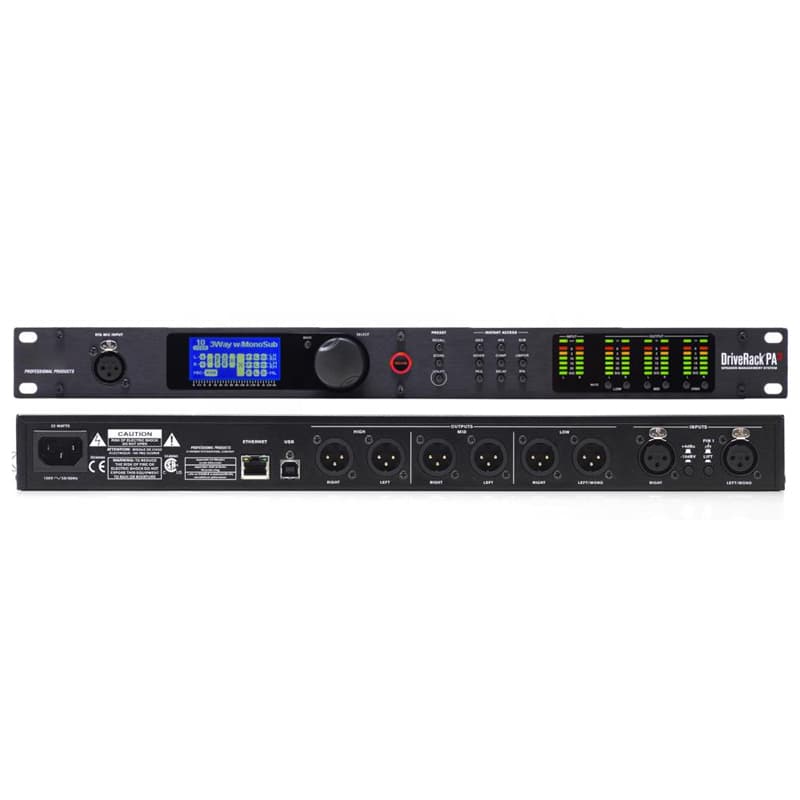

dbx DriveRack PA2 Loudspeaker Management Processor
Available now from Tay Music World in Processors.
USh 1,500,000
View ProductLoading
DBX 480 Processor
UGX 2,000,000
Standard
Processors
Before this product is published publicly, confirm the exact physical dbx unit. Check whether the rear panel says DriveRack 480, confirm the screen, buttons, data wheel, input/output XLR connectors, power supply/voltage, RS-232/software control condition, firmware/functionality, and whether the unit passes signal cleanly. If the stock item is DriveRack 4800, 4820, 260, PA2, VENU360, or another processor, the specs and descriptions must be corrected before it goes live.
Price
USh 2,000,000
Select option
Delivery in Kampala usually takes 2 to 4 days.
Pay by MTN MoMo, Airtel Money, or cash on delivery.
What this product does well and why it fits the setup.
Before this product is published publicly, confirm the exact physical dbx unit. Check whether the rear panel says DriveRack 480, confirm the screen, buttons, data wheel, input/output XLR connectors, power supply/voltage, RS-232/software control condition, firmware/functionality, and whether the unit passes signal cleanly. If the stock item is DriveRack 4800, 4820, 260, PA2, VENU360, or another processor, the specs and descriptions must be corrected before it goes live.
Before this product is published publicly, confirm the exact physical dbx unit. Check whether the rear panel says DriveRack 480, confirm the screen, buttons, data wheel, input/output XLR connectors, power supply/voltage, RS-232/software control condition, firmware/functionality, and whether the unit passes signal cleanly. If the stock item is DriveRack 4800, 4820, 260, PA2, VENU360, or another processor, the specs and descriptions must be corrected before it goes live.

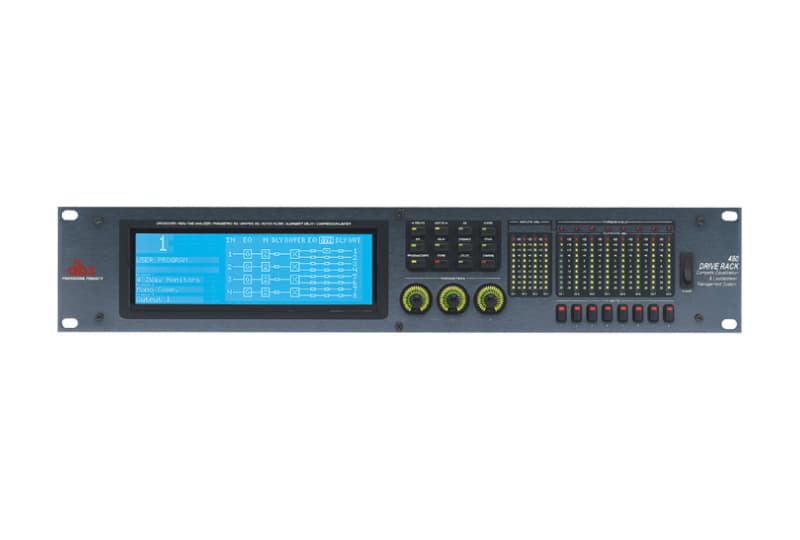

The DBX 480 Processor is treated here as the dbx DriveRack 480, a complete equalization and loudspeaker management system. It is not a speaker and it is not an amplifier, so it does not power speakers by itself. Its job is to sit between the mixer and the amplifiers or powered speaker inputs, shaping and protecting the signal before it reaches the PA system.
The DriveRack 480 is more advanced than smaller two-input DriveRack units because it offers a 4-input and 8-output structure. That makes it useful for systems with left/right mains, subs, fills, zones, delays, monitors, or more complex routing. For churches, halls, tours, clubs, schools, and rental companies, this flexibility can make one processor handle a full speaker layout instead of patching several smaller units together.
The 480 includes input EQ options such as 9-band parametric EQ or 31-band graphic EQ, plus notch filtering. In practical use, this helps control harsh frequencies, tame room problems, and shape the system before signal reaches the amplifiers. EQ is powerful, but it must be used carefully. Bad EQ can make a good system sound thin, muddy, or tiring.
A major reason to use a processor like the DriveRack 480 is crossover control. Highpass, lowpass, and bandpass filtering can send the correct frequency range to tops, subs, fills, or other speaker sections. This is especially important in tops-and-subs systems because sending deep bass into tops can waste power or damage drivers, while sending the wrong range to subs can make bass unclear.
The DriveRack 480 includes dynamics processing such as compressor/limiter control, plus output delay, output level, and phase compensation. These are not decoration features. Limiters help protect speakers from excessive signal, delay helps align speakers that are physically apart, and phase control helps keep the system coherent. Wrong limiter, delay, or phase settings can make the PA sound worse or put drivers at risk.
The DriveRack 480 documentation references real-time analyzer support and software/control utilities for setup. These tools can help an engineer see what is happening in the system and tune more accurately. Still, measurement tools are only helpful when interpreted correctly. The operator needs to understand microphones, speaker placement, gain structure, routing, EQ, and limiter behavior.
Technical details at a glance.
Brand
Processors
dbx Professional Audio
Official Model
Processors
DriveRack 480
Catalogue Name
Processors
DBX 480 Processor
Product Status
Processors
Discontinued official dbx DriveRack product
Product Type
Processors
Complete equalization and loudspeaker management system
System Role
Processors
Signal processing, EQ, crossover, dynamics, delay, phase, routing, and loudspeaker management between mixer and amplifiers/speakers
Recommended Official Use
Processors
Installed, portable, and tour applications
Input / Output Format
Processors
4 inputs / 8 outputs
Connectors
Processors
XLR input and output connectors
Input EQ
Processors
9-band parametric EQ or 31-band graphic EQ plus notch filters
Filter Set
Processors
Highpass, lowpass, and bandpass filter creation
Dynamics Processing
Processors
Compressor/limiter processing available on channels
Output Processing
Processors
Output delay, output level, and phase compensation
Analyzer Support
Processors
Dual real-time analyzers on channels 3 and 4 referenced in DriveRack 480 documentation
Recommended Use
Processors
Advanced tops and subs systems, churches, halls, DJs, live events, fixed installations, clubs, schools, tours, and rental racks
Not Recommended For
Processors
Users who cannot configure crossover, limiter, routing, delay, phase, and gain settings safely; it does not power speakers by itself
Publishing Note
Processors
Confirm physical DriveRack 480 condition, voltage/power supply, screen/buttons, XLR connectors, RS-232/software control, and signal functionality before public publishing
Final purchase guidance and support information.
Need help before checkout? Talk to the team on WhatsApp for purchase guidance and product confirmation.
