DBX DriveRack 260 Processor
UGX 1,500,000
Standard
Processors

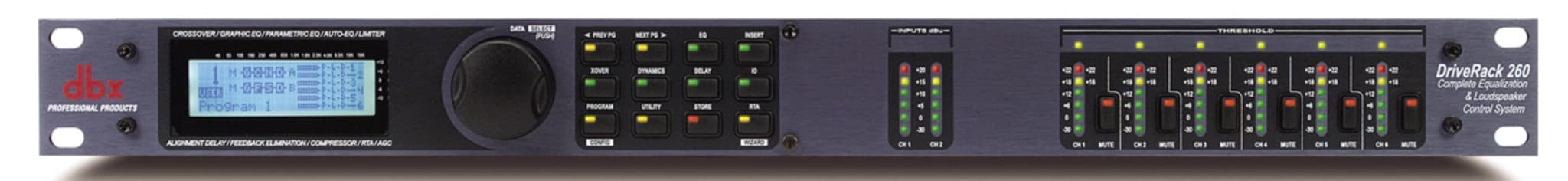

The DBX 260 Driver Rack Processor is treated here as the dbx DriveRack 260, a loudspeaker management processor. It is not a speaker and it is not an amplifier, so it does not power speakers by itself. Its job is to sit between the mixer and the amplifiers or active speaker inputs, shaping and protecting the signal before it reaches the sound system.
Price
USh 1,500,000
Select option
Delivery in Kampala usually takes 2 to 4 days.
Pay by MTN MoMo, Airtel Money, or cash on delivery.
What this product does well and why it fits the setup.
The DBX 260 Driver Rack Processor is treated here as the dbx DriveRack 260, a loudspeaker management processor. It is not a speaker and it is not an amplifier, so it does not power speakers by itself. Its job is to sit between the mixer and the amplifiers or active speaker inputs, shaping and protecting the signal before it reaches the sound system.
The DBX 260 Driver Rack Processor is treated here as the dbx DriveRack 260, a loudspeaker management processor. It is not a speaker and it is not an amplifier, so it does not power speakers by itself. Its job is to sit between the mixer and the amplifiers or active speaker inputs, shaping and protecting the signal before it reaches the sound system.
A PA system with tops and subs needs more than just volume. The DriveRack 260 helps manage crossover points, EQ, limiting, delay, routing, and feedback control so each speaker section receives the right signal. In a real setup, this can make vocals clearer, bass cleaner, and the overall system safer when the processor is configured properly.
The 2-input, 6-output design makes the DriveRack 260 useful for systems that need separate outputs for left/right tops, subwoofers, fills, monitors, or zones. It fits churches, halls, event companies, DJs, schools, clubs, fixed installations, and rental racks where the system needs repeatable control instead of guessing settings on every job.
The DriveRack 260 includes tools such as graphic EQ, parametric EQ, Auto EQ, pink noise/RTA support, and Advanced Feedback Suppression. These tools can help tune rooms, reduce ringing frequencies, and improve speech clarity. They still need sensible use. Auto EQ is a setup aid, not a replacement for listening, microphone placement, and proper speaker positioning.
One of the biggest reasons to use a processor like this is protection. Correct crossover settings stop subs from receiving the wrong range and stop tops from being overloaded with deep bass. Limiters can help protect drivers from excessive signal. Bad limiter or crossover settings, however, can still damage speakers, so the processor should be configured by someone who understands the cabinets and amplifiers being used.
The DriveRack 260 provides alignment and zone delay, which is useful when subs, tops, fills, or remote speakers are not physically aligned. Delay can help tighten the system and reduce messy timing between speaker zones. This matters in churches, halls, outdoor events, and venues where speakers are spread across different positions.
Before this product is published publicly, confirm the physical dbx DriveRack 260 unit. Check the screen, buttons, data wheel, input/output XLR connectors, power supply/voltage, RTA mic input, RS-232/zone control ports, firmware/functionality, and whether the unit passes signal cleanly. If the stock item is another DriveRack model such as PA, PA+, VENU360, or a different processor, the product page must be corrected before it goes live.
Technical details at a glance.
Brand
Processors
dbx Professional Audio
Official Model
Processors
DriveRack 260
Catalogue Name
Processors
DBX 260 Driver Rack Processor
Product Type
Processors
Loudspeaker management processor
System Role
Processors
Signal processing, crossover, EQ, limiting, delay, routing, and system protection between mixer and amplifiers/speakers
Inputs
Processors
2 line inputs plus 1 RTA microphone input
Input Connectors
Processors
2 female XLR line inputs plus XLR RTA mic input
Outputs
Processors
6 total outputs
Output Connectors
Processors
Male XLR outputs
Conversion
Processors
dbx Type IV A/D conversion system
Sample Rate
Processors
48kHz
Frequency Response
Processors
20Hz to 20kHz, +/- 0.5dB
THD+Noise
Processors
0.003% typical at +4dBu, 1kHz, 0dB gain
Dynamic Range
Processors
Greater than 110dB A-weighted, greater than 107dB unweighted
Max Input
Processors
+30dBu with input jumpers in +30 position
Max Output
Processors
+22dBu
Processing Features
Processors
Graphic EQ, parametric EQ, compression, limiting, Auto EQ, Advanced Feedback Suppression, crossover/bandpass routing, delay, pink noise generator, and full-time RTA
Delay
Processors
2.7 seconds of alignment and zone delay
Control
Processors
RS-232 PC GUI control and Zone Controller wall-panel support
Recommended Use
Processors
Tops and subs systems, churches, halls, DJs, live events, fixed installations, clubs, schools, and rental racks
Not Recommended For
Processors
Users who cannot configure crossover, limiter, routing, and gain settings safely; it does not power speakers by itself
Publishing Note
Processors
Confirm physical DriveRack 260 condition, voltage/power supply, screen/buttons, connectors, and signal functionality before public publishing
Final purchase guidance and support information.
